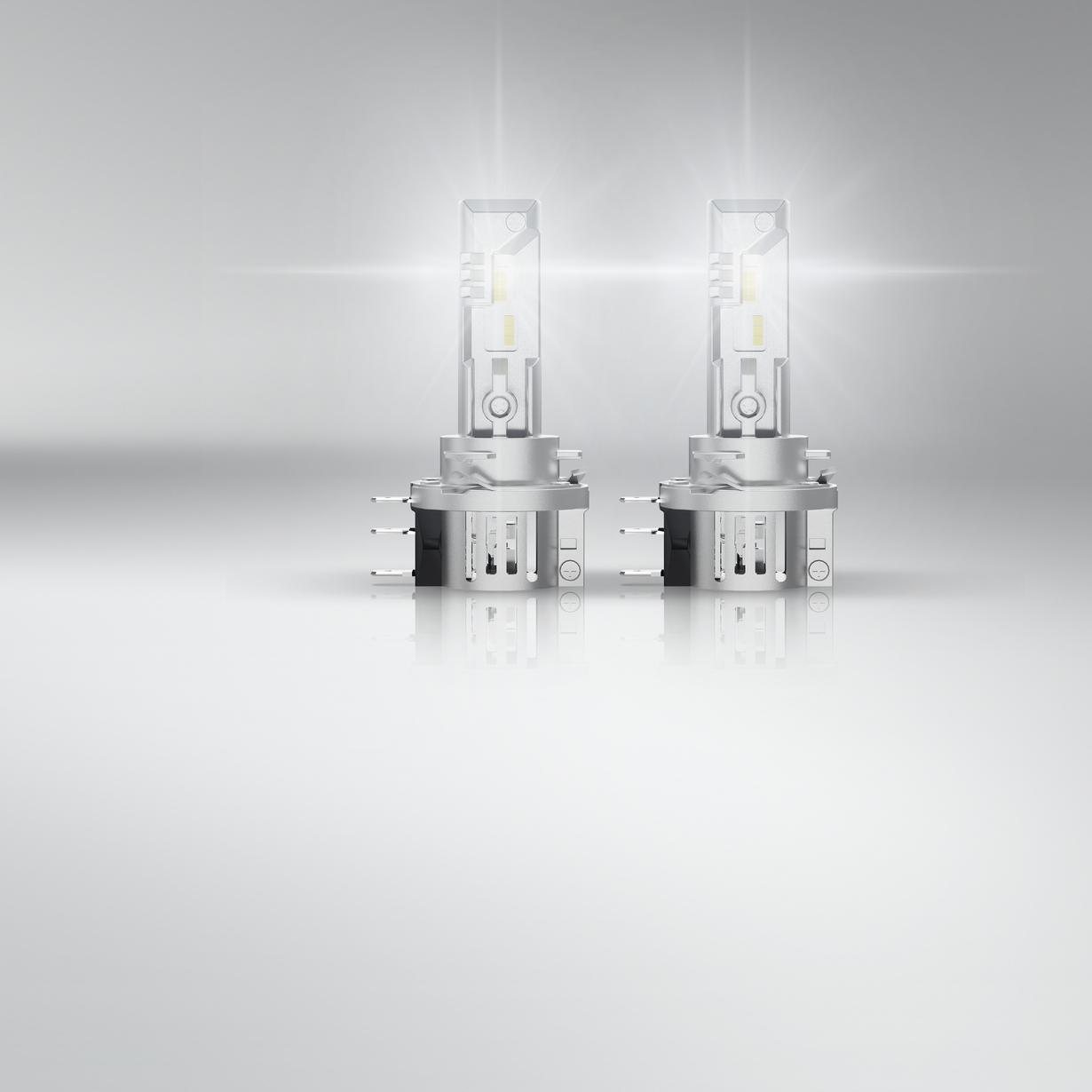

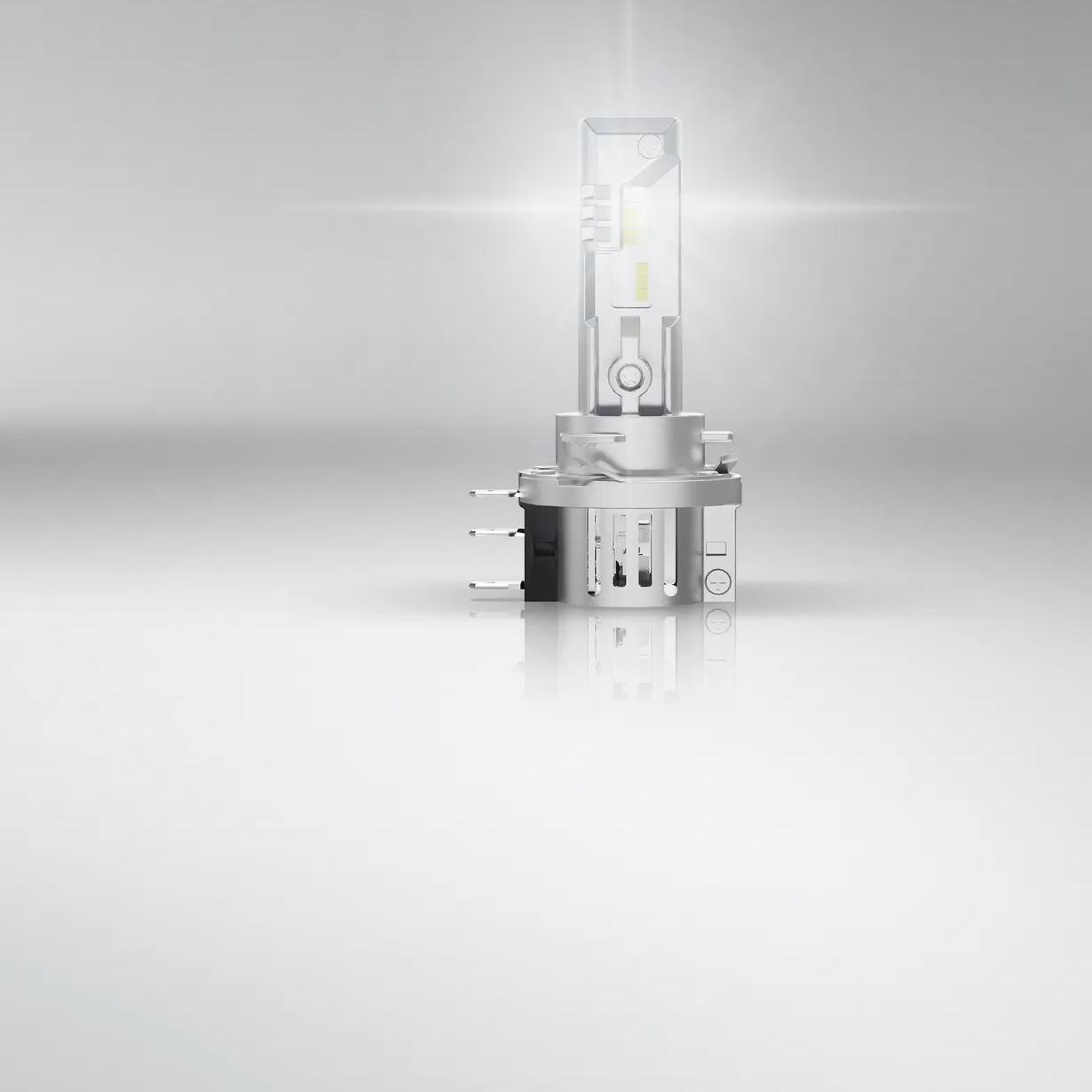

LEDriving HL EASY GEN 2 H15
LED high and low beams lamps with plug & play system: no adapters and caps needed
With its socket-based solution, the OSRAM LEDriving HL EASY GEN 2 retrofits provide an ultra-compact LED replacement of conventional high and low beam lamps with cool white LED light – providing a stylish look as well as superior brightness. It offers an easy plug & play installation with optimized compatibility: no adapters and caps needed! An optimized high-speed fan ensures active cooling – making a higher performance and high-level light output possible thanks to maximized heat dissipation.
The LEDriving HL EASY GEN 2 high and low beam lamps by OSRAM replace conventional halogen lamps, are 12V compatible and have a cool white color temperature. With the latest LED technology and very compact design, these lamps allow a high compatibility and an easy installation for cars with the respective halogen lamp types. These products do not have ECE approval and must not be used on public roads in any exterior application. Public roads use leads to cancellation of operating license and loss of insurance coverage. Several countries forbid sale and use of these products. Please contact your local distributor for further information.
The LEDriving HL EASY GEN 2 high and low beam lamps by OSRAM replace conventional halogen lamps, are 12V compatible and have a cool white color temperature. With the latest LED technology and very compact design, these lamps allow a high compatibility and an easy installation for cars with the respective halogen lamp types. These products do not have ECE approval and must not be used on public roads in any exterior application. Public roads use leads to cancellation of operating license and loss of insurance coverage. Several countries forbid sale and use of these products. Please contact your local distributor for further information.
Ultra compact LED replacement for conventional high and low beam lamps
“Socket Design” – no adapters and caps neededEasy plug & play installation
Allowing a high compatibility and an easy installationCool White color temperature
Better visibility thanks to daylight effectTechnical Data
Product information
Product type (off-road vs. on-road)
Off-road ≙ H15
Application (Category and Product specific)
Mainly used for Low Beam, High Beam, Daytime running light, position lighting applications
General Product Information
Global order reference
64176DWESY2
Electrical Data
Power input
23 / 4 W
Nominal voltage
12 V
Test voltage
13.2 V
Power input tolerance
±25 %
Photometric Data
Nominal luminous flux
1250/250 lm
Luminous flux tolerance
±25 %
Light color LED
Cool white
Color temperature
6500 K
Physical Attributes & Dimensions
Length
73.0 mm
Diameter
15.8 mm
Product weight
43.00 g
Lamp base
PGJ23t-1
Lifetime Data
Lifespan Tc
1000 hr
Capabilities
Technology
LED
Environmental & Regulatory Information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Primary article identifier
4062172426442
Declaration no. in SCIP database
In work
Packaging information
EAN |
Unit |
Piece |
Dimension l x w x h |
Weight |
Volume |
|---|---|---|---|---|---|
| 4062172426442 |
HFB
| 2 | 100mm x 51mm x 120mm | 114.00g | 0.61dm³ |
| 4062172426459 |
VS
| 10 | 266mm x 111mm x 134mm | 649.00g | 3.96dm³ |
Downloads
Tools
Compatibility lists
These accessories are made for LED lamps suitable for offroad usage. Find out more! https://www.osram.com/ledcheck
These accessories are made for LED lamps suitable for offroad usage. Find out more! https://www.osram.com/ledcheck
Vehicle Lamp Finder
Find the right lamps for your car, motorcycle or truck. www.osram.com/vehiclelamps
Find the right lamps for your car, motorcycle or truck. www.osram.com/vehiclelamps
Ürün etiketleme
HL EASY white, made in China: (GB) These products do not have ECE approval and must not be used on public roads in any exterior application. Public roads use leads to cancellation of operating license and loss of insurance coverage. Several countries forbid sale and use of these products. Please contact your local distributor for further information., (SK) Autožiarovka. Tieto výrobky nemajú schválenie EHK, čo znamená, že je zakázané ich používať na cestách v akejkoľvek vonkajšej aplikácii. Používanie na cestách má za následok zaniknutie oprávnenia na používanie a stratu záručného krytia. Viacero krajín zakazuje predaj a používanie týchto výrobkov. Ďalšie informácie o dostupnosti vo vašej krajine vám poskytne váš miestny distribútor. Biela, (UA) Автомобільна лампа. W – потужність Вт, V – напруга В, Цоколь - див. на упаковці. Призначення, строк служби - див. на упаковці або запитувати у продавця. Зберігати в сухому місці. Не кидати. Термін придатності - необмежений. Ці вироби не мають схвалення ECE й не можуть використовуватися в системах зовнішнього освітлення на дорогах загального користування. Таке викори-стання призведе до скасування ліцензії на експлуатацію та страхового забезпечення. У деяких країнах забороняється продаж і використання цих виробів. За докладнішою інформацією зверніться до місцевого дистриб’ютора. Білий.
