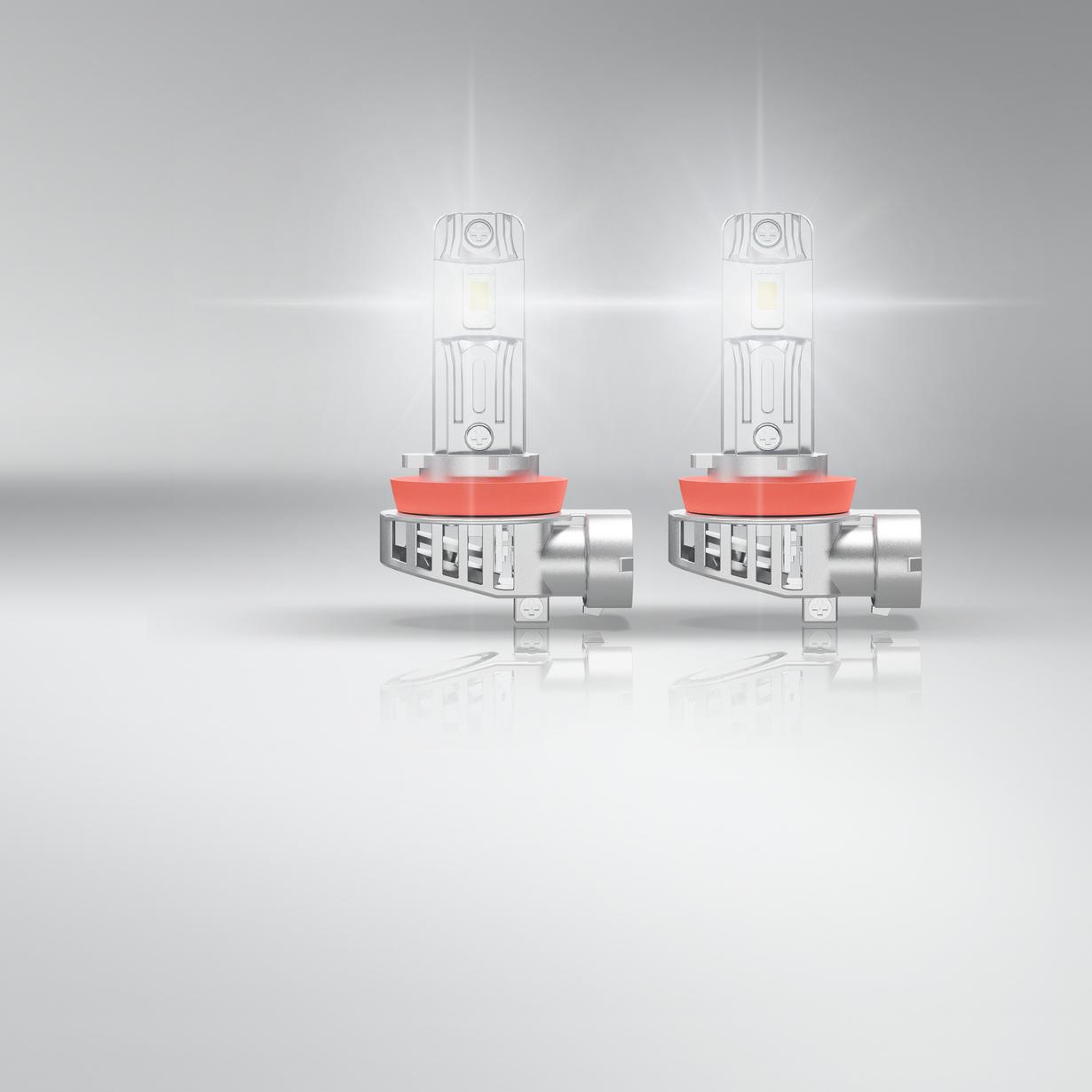

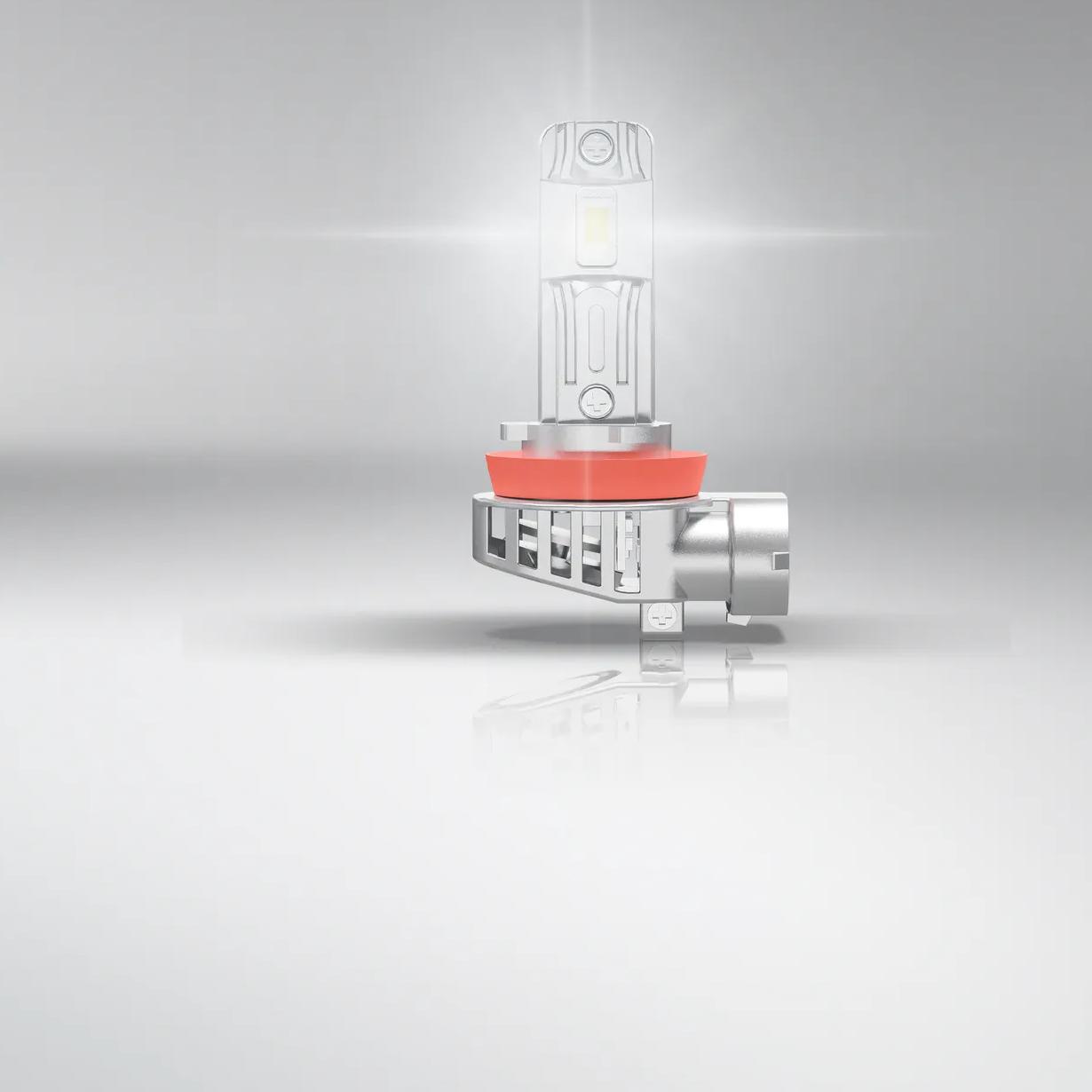

LEDriving HL EASY GEN 2 H8/H9/H11/H16
LED high and low beams lamps with plug & play system: no adapters and caps needed
With its socket-based solution, the OSRAM LEDriving HL EASY GEN 2 retrofits provide an ultra-compact LED replacement of conventional high and low beam lamps with cool white LED light – providing a stylish look as well as superior brightness. It offers an easy plug & play installation with optimized compatibility: no adapters and caps needed! An optimized high-speed fan ensures active cooling – making a higher performance and high-level light output possible thanks to maximized heat dissipation.
The LEDriving HL EASY GEN 2 high and low beam lamps by OSRAM replace conventional halogen lamps, are 12V compatible and have a cool white color temperature. With the latest LED technology and very compact design, these lamps allow a high compatibility and an easy installation for cars with the respective halogen lamp types. These products do not have ECE approval and must not be used on public roads in any exterior application. Public roads use leads to cancellation of operating license and loss of insurance coverage. Several countries forbid sale and use of these products. Please contact your local distributor for further information.
The LEDriving HL EASY GEN 2 high and low beam lamps by OSRAM replace conventional halogen lamps, are 12V compatible and have a cool white color temperature. With the latest LED technology and very compact design, these lamps allow a high compatibility and an easy installation for cars with the respective halogen lamp types. These products do not have ECE approval and must not be used on public roads in any exterior application. Public roads use leads to cancellation of operating license and loss of insurance coverage. Several countries forbid sale and use of these products. Please contact your local distributor for further information.
Ultra compact LED replacement for conventional high and low beam lamps
“Socket Design” – no adapters and caps neededEasy plug & play installation
Allowing a high compatibility and an easy installationCool White color temperature
Better visibility thanks to daylight effectTechnical Data
Product information
Application (Category and Product specific)
Mainly used for headlight/ fog light applications
Product type (off-road vs. on-road)
Off-road ≙ H8/H11/H16
General Product Information
Global order reference
64211DWESY2
Electrical Data
Power input
26 W
Nominal voltage
12 V
Nominal wattage
26 W
Power input tolerance
±25 %
Test voltage
13.5 V
Photometric Data
Nominal luminous flux
2000 lm
Luminous flux tolerance
±25 %
Light color LED
Cool white
Color temperature
6500 K
Physical Attributes & Dimensions
Length
65.0 mm
Diameter
14.8 mm
Product weight
32.00 g
Lamp base
-
Lifetime Data
Lifespan Tc
1000 hr
Capabilities
Technology
LED
Environmental & Regulatory Information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Primary article identifier
4062172426527
Declaration no. in SCIP database
In work
Packaging information
EAN |
Unit |
Piece |
Dimension l x w x h |
Weight |
Volume |
|---|---|---|---|---|---|
| 4062172426527 |
HFB
| 2 | 100mm x 51mm x 120mm | 93.00g | 0.61dm³ |
| 4062172426534 |
VS
| 10 | 266mm x 111mm x 134mm | 544.00g | 3.96dm³ |
