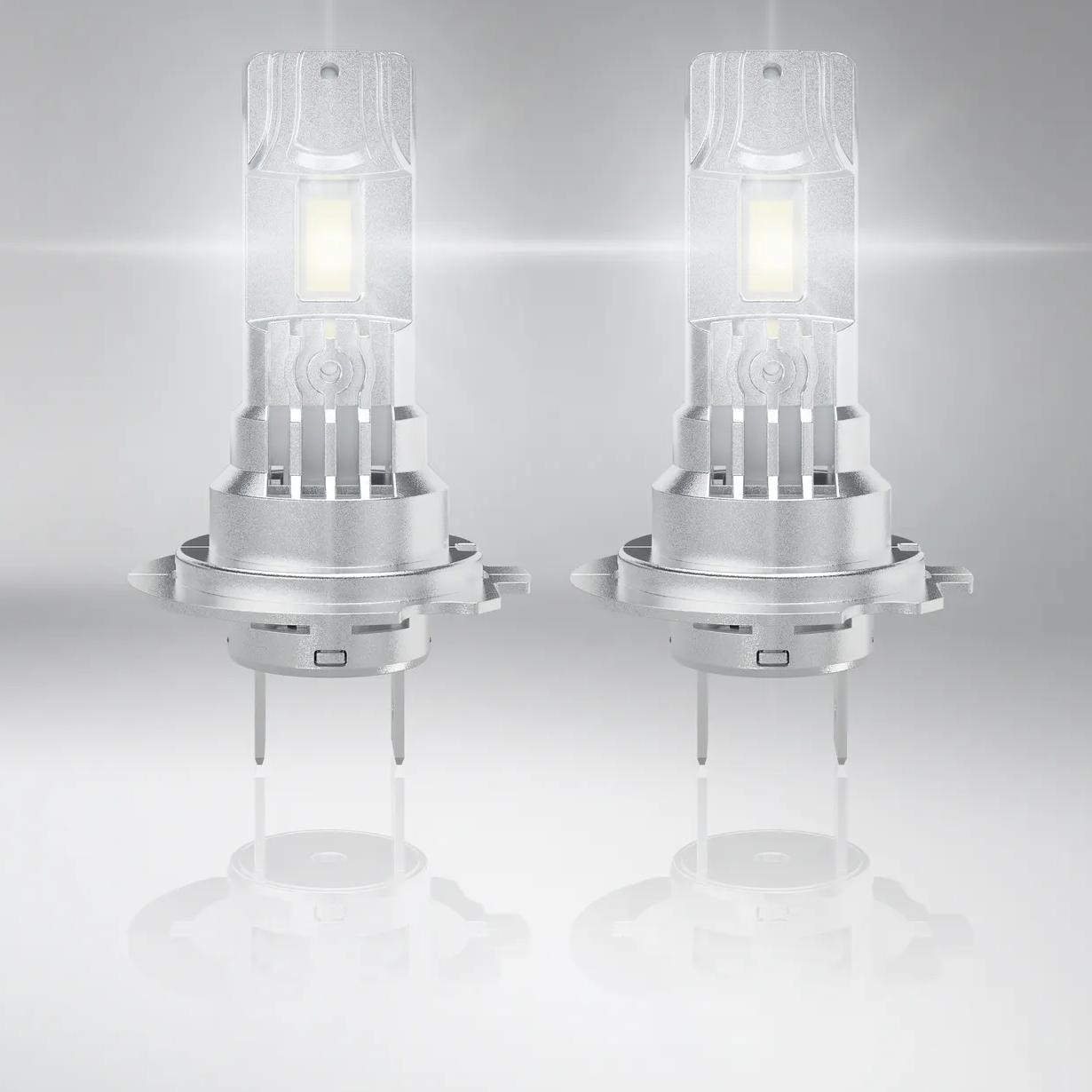

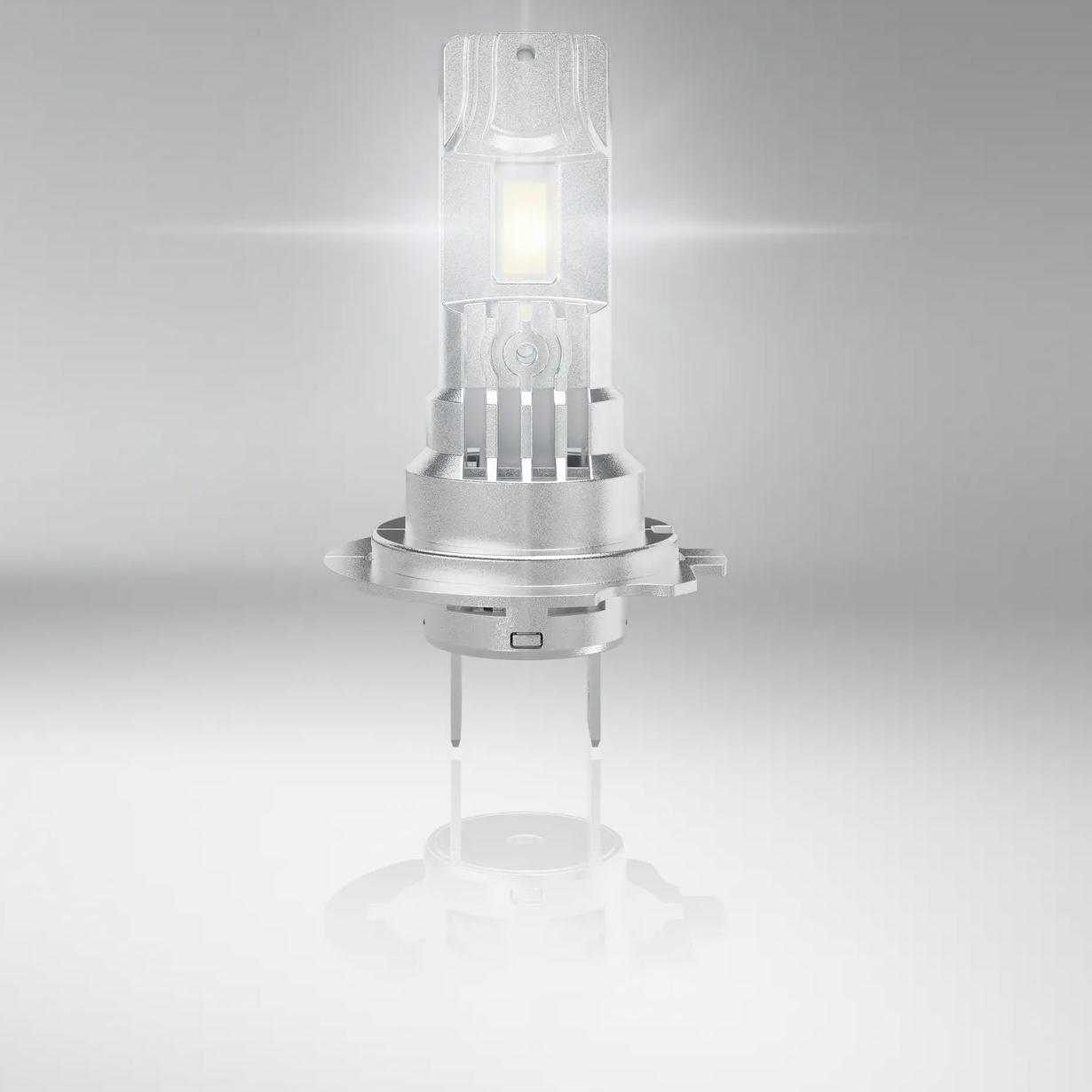

LEDriving HLT EASY H7
H7 LED replacement for 24V
LEDriving HLT EASY replacement lamps offer a modern and intense light with a color temperature of up to 6,500 Kelvin. These replacement lamps are suitable for conventional H7 high and low beam lamps. LEDriving HLT EASY for high and low beam off-road applications are 24 V compatible and stand out with superior brightness, high compatibility, easier installation due to integrated driver and no radio disturbance. These products do not have ECE approval and must not be used on public roads in any exterior application. Public roads use leads to cancellation of operating license and loss of insurance coverage. Several countries forbid sale and use of these products. Please contact your local distributor for further information.
LEDriving HLT EASY H7
Easy Plug & Play installation
„Socket Design“ – no adapters and caps neededSuperior brightness
Up to +300% compared to minimum ECE R112. More light allows to see farther and therefore react sooner. Signs, obstacles and hazards can be recognized soonerLED replacement for conventional H7 high and low beam lamps
Reduced glaring thanks to an optimized light distributionTechnical Data
Product information
Application (Category and Product specific)
Mainly used for Low Beam, High Beam
Product type (off-road vs. on-road)
Off-road ≙ H7
General Product Information
Global order reference
64215DWESY-2HB
Electrical Data
Power input
20 W
Nominal voltage
24 V
Nominal wattage
20 W
Power input tolerance
±25 %
Test voltage
28.0 V
Photometric Data
Nominal luminous flux
2000 lm
Luminous flux tolerance
±25 %
Light color LED
Cool white
Color temperature
6500 K
Physical Attributes & Dimensions
Lamp base
PX26d
Length
60.0 mm
Diameter
20.0 mm
Product weight
21.00 g
Lifetime Data
Lifespan Tc
> 2000 hr
Capabilities
Technology
LED
Environmental & Regulatory Information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Primary article identifier
4062172435307
Declaration no. in SCIP database
In work
Packaging information
EAN |
Unit |
Piece |
Dimension l x w x h |
Weight |
Volume |
|---|---|---|---|---|---|
| 4062172435307 New |
HFB
|
2 | 100mm x 51mm x 120mm | 72.00g | 0.61dm³ |
| 4062172435314 New |
VS
|
10 | 266mm x 111mm x 134mm | 439.00g | 3.96dm³ |
