TYREinflate 200 OTI200

Rapid tyre inflator with wind-up cable

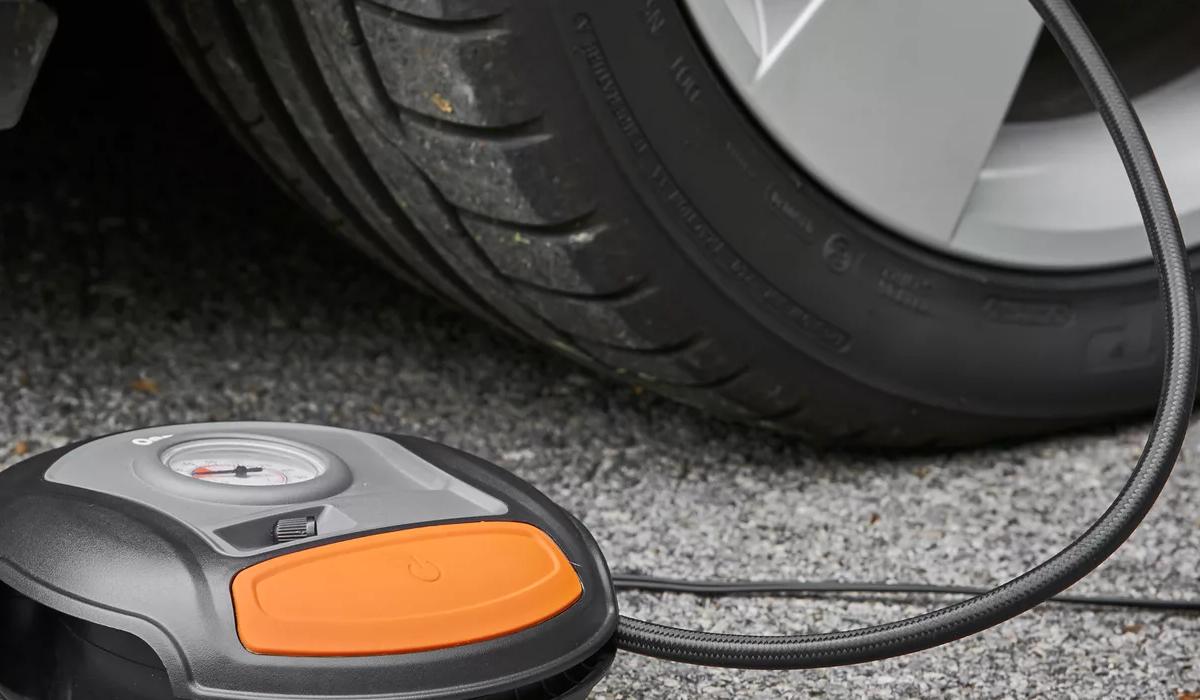

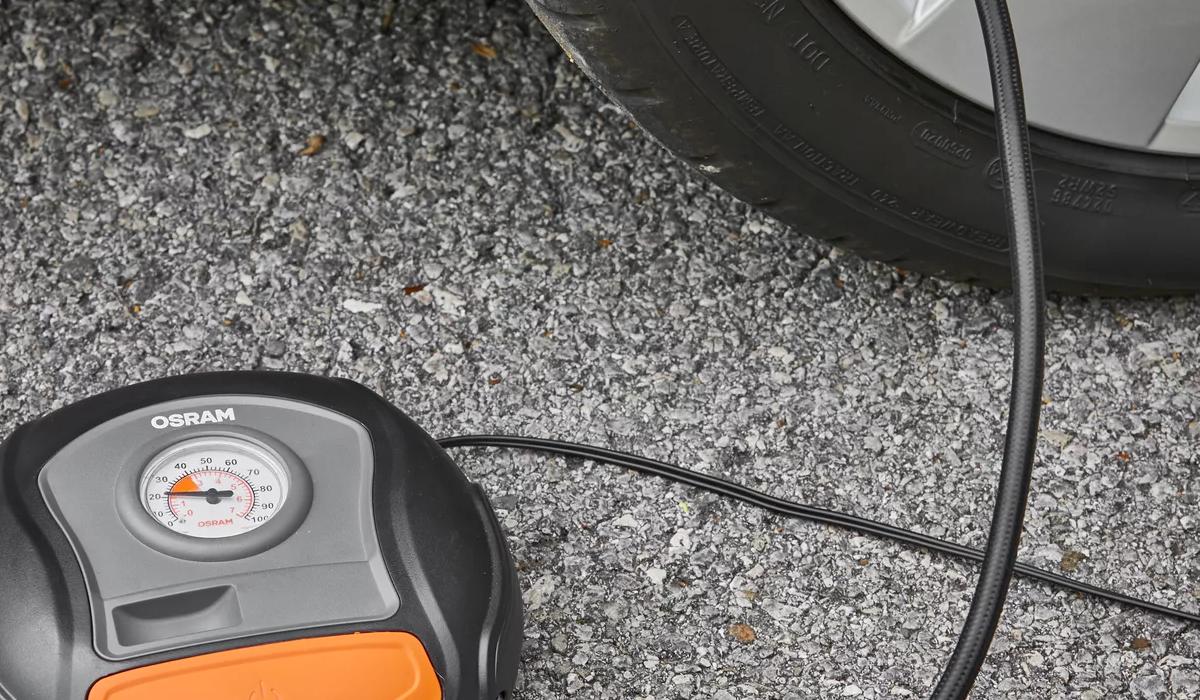

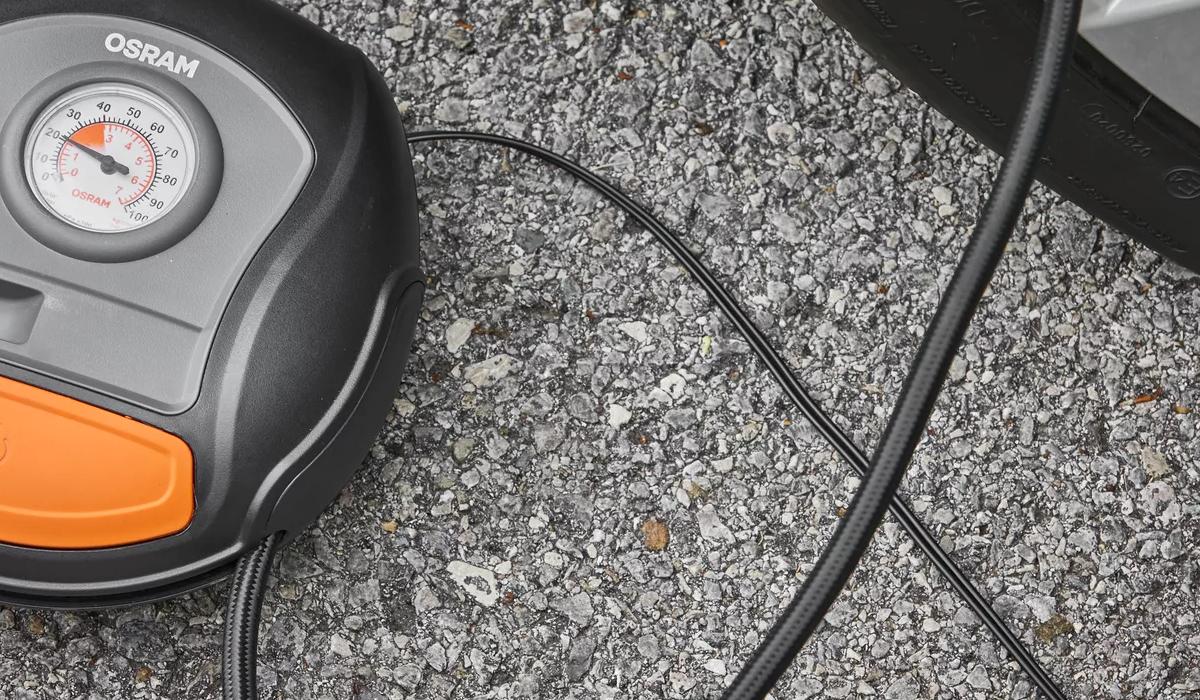

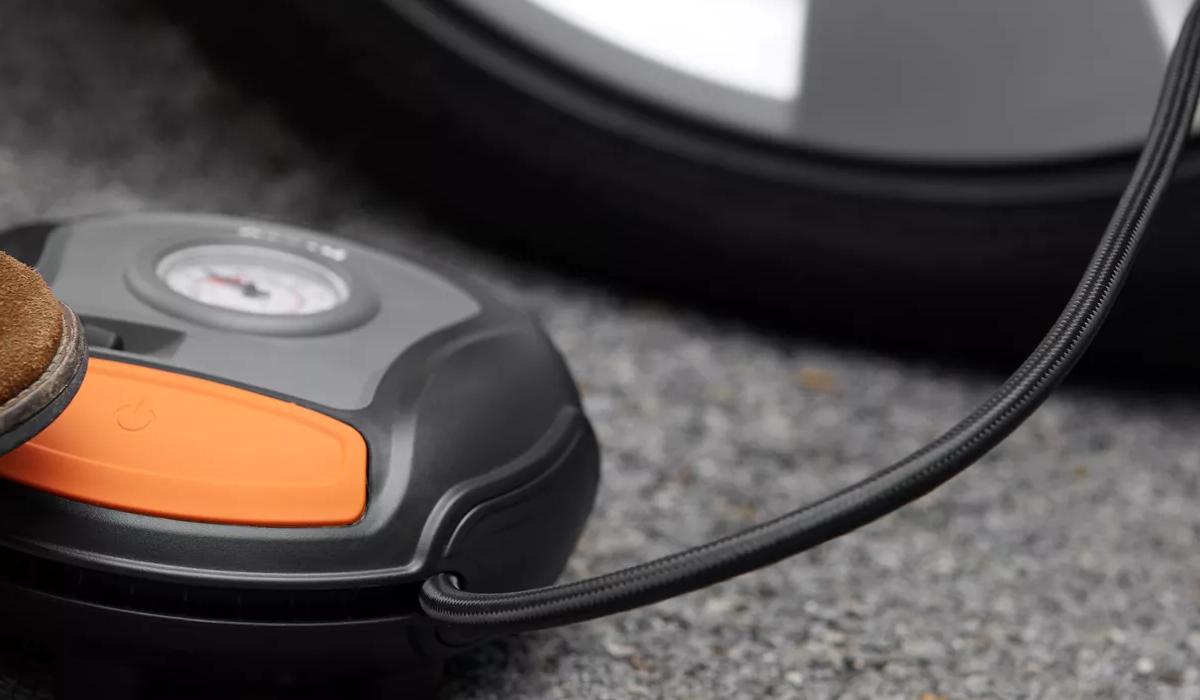

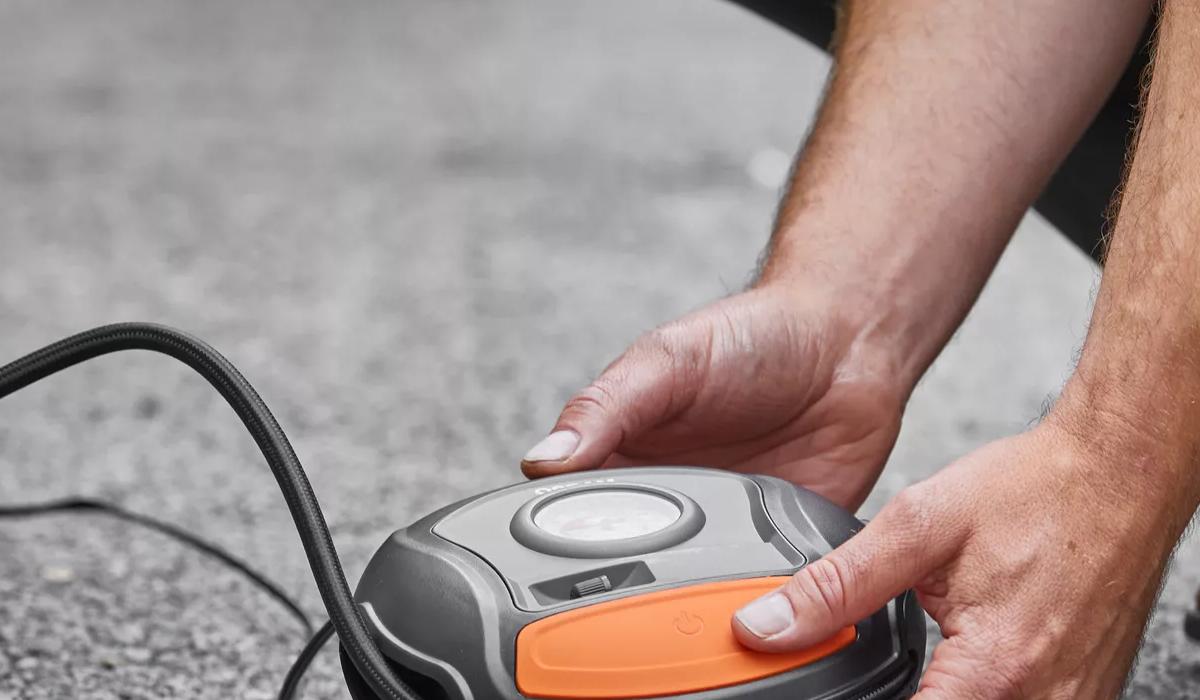

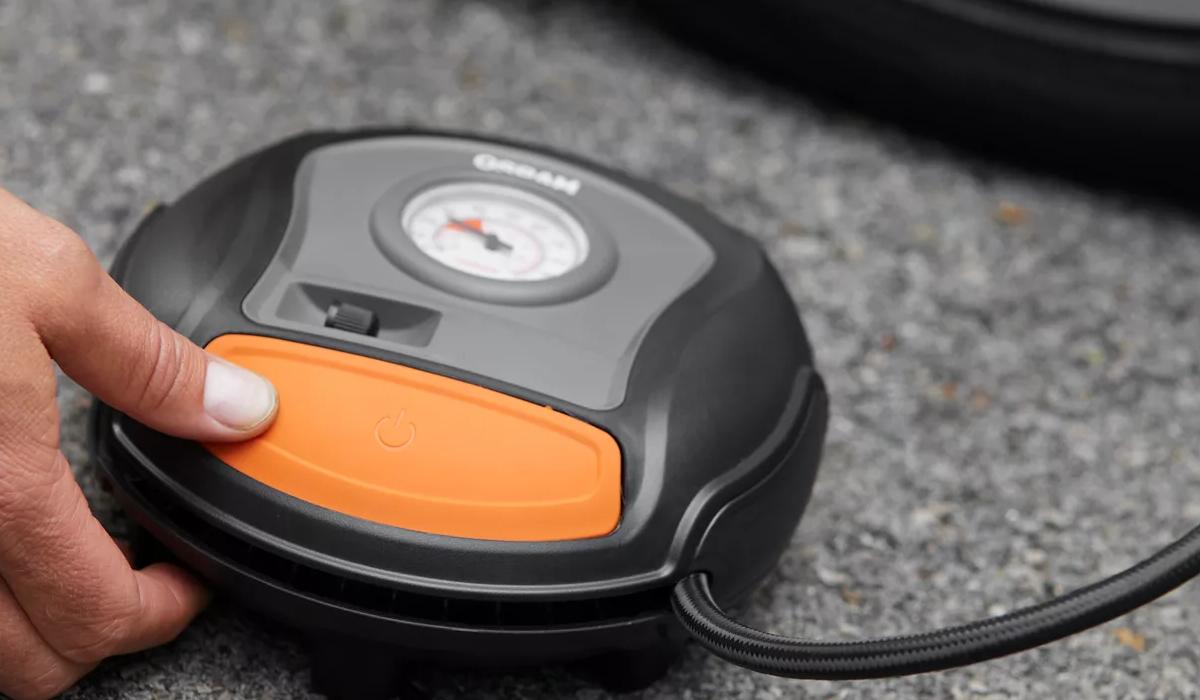

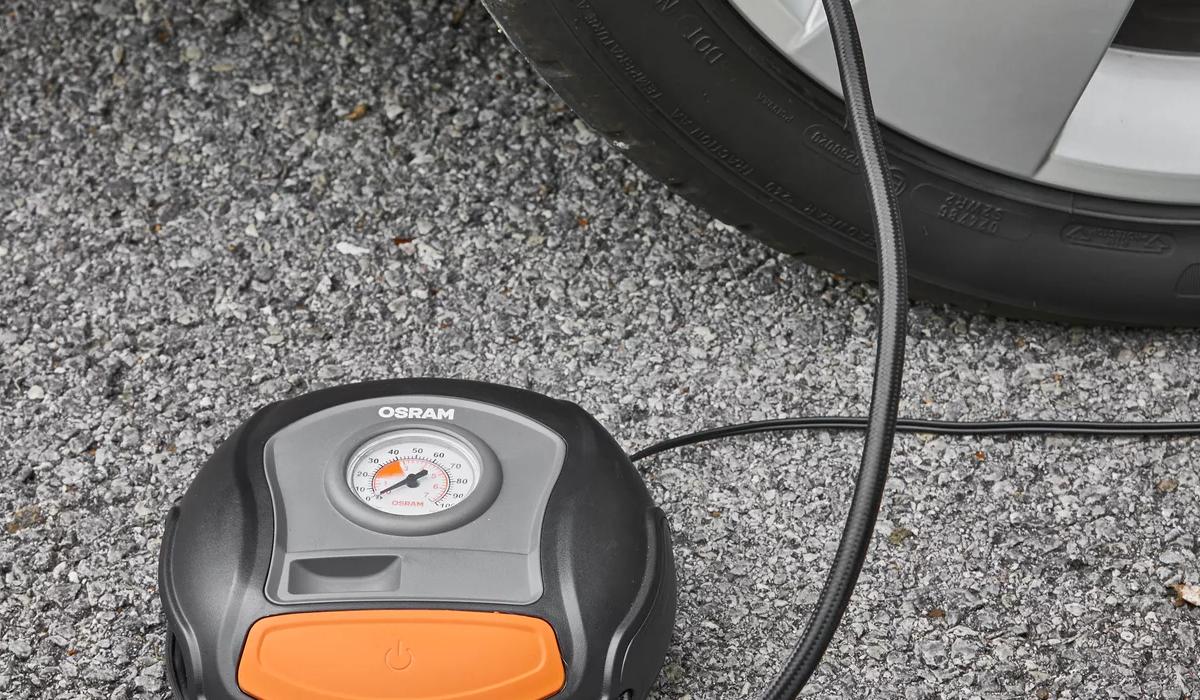

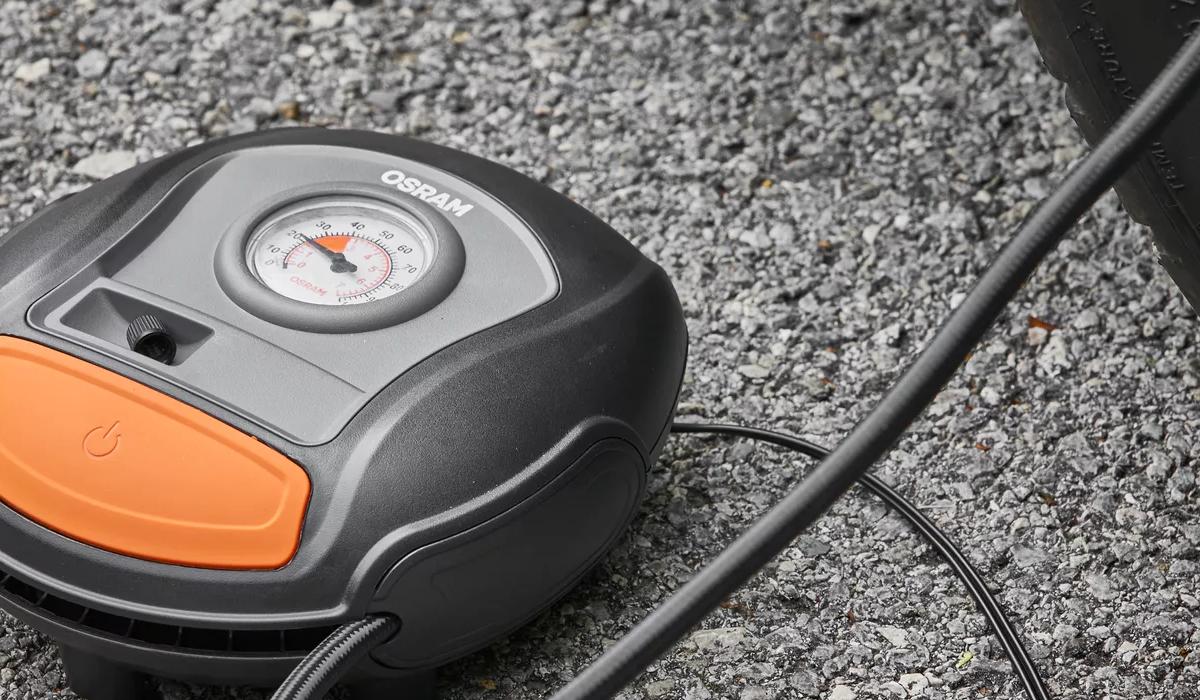

The OSRAM Tyreinflate 200 analogue tyre inflator inflates a 13” tyre from flat in up to 4.5 minutes**. It has a large on/off button for easy use. Its stable design keeps the inflator still while in use.

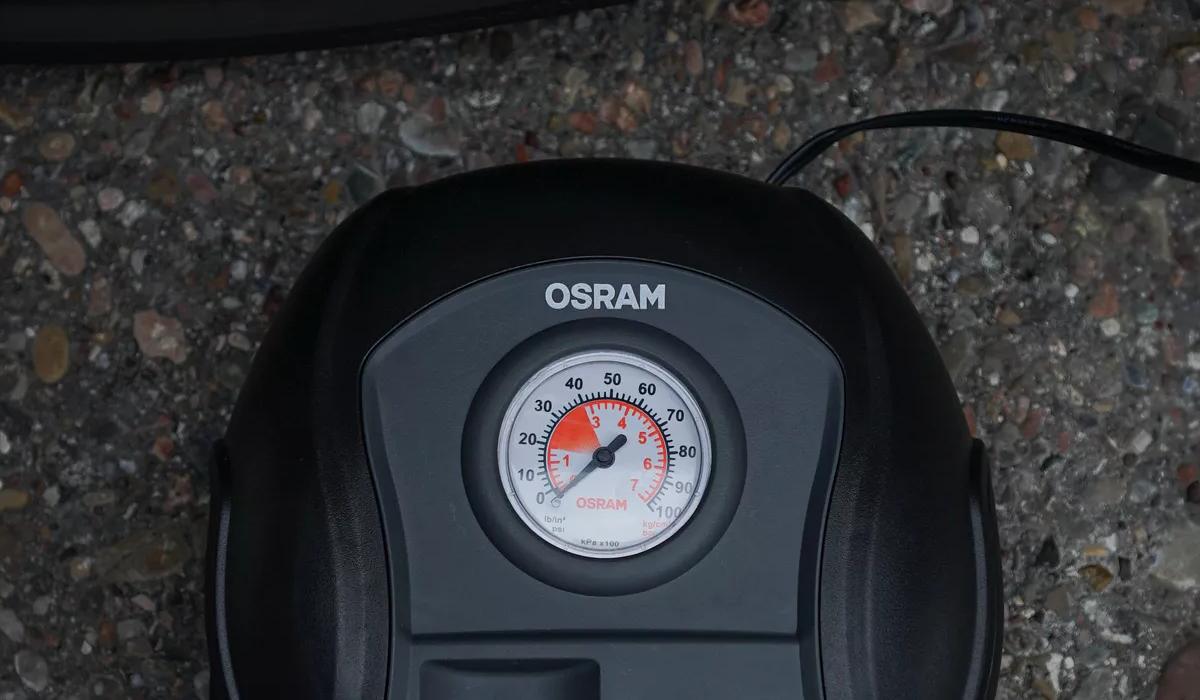

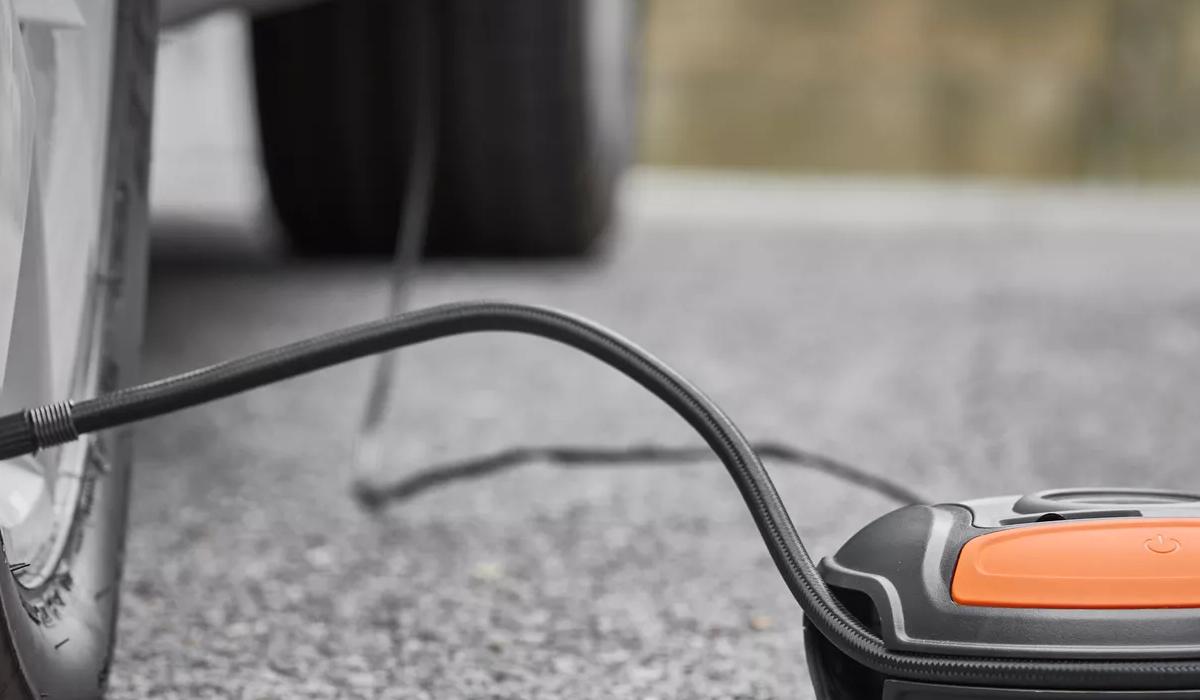

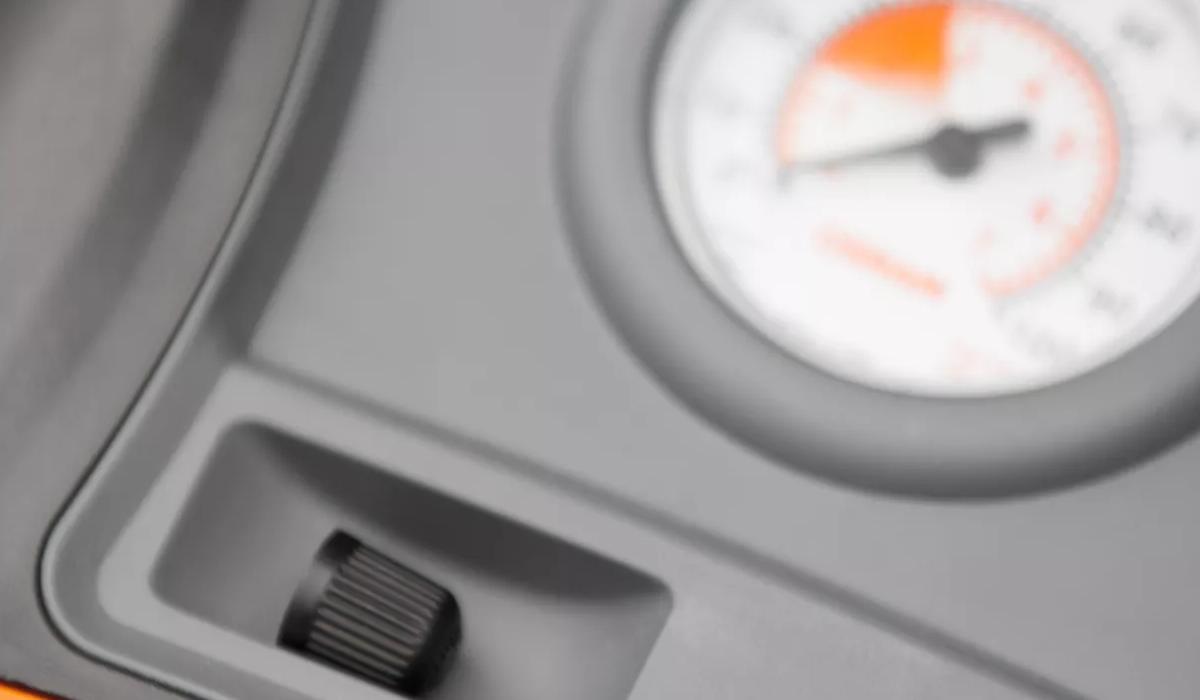

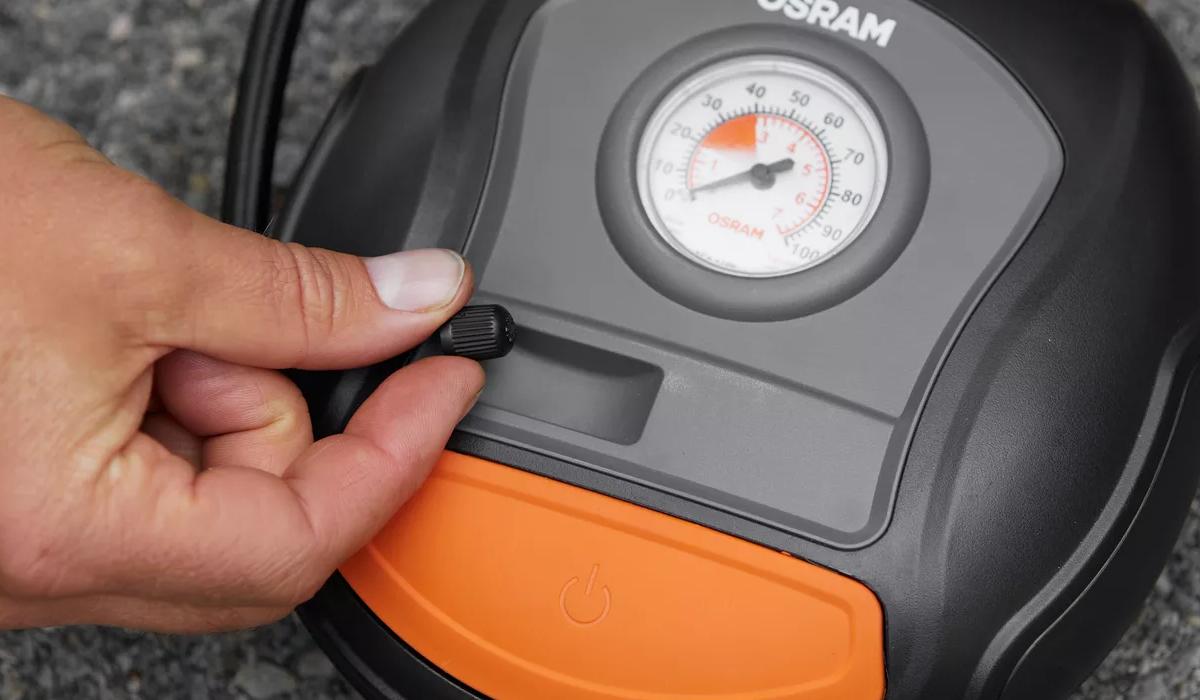

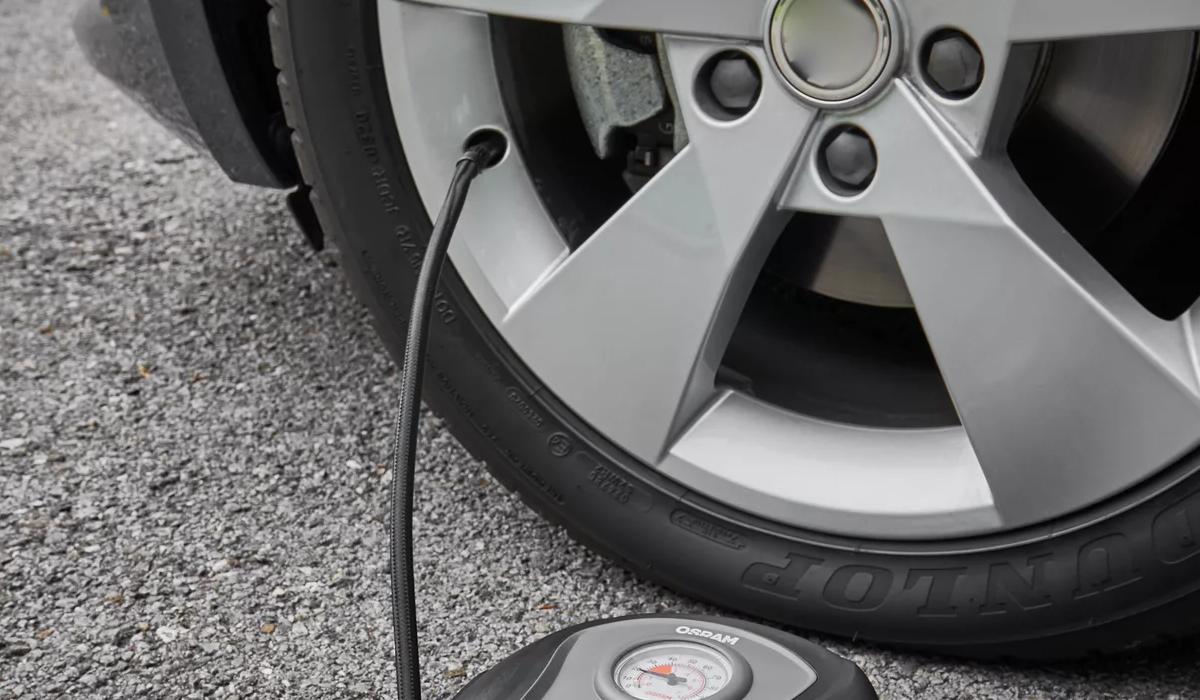

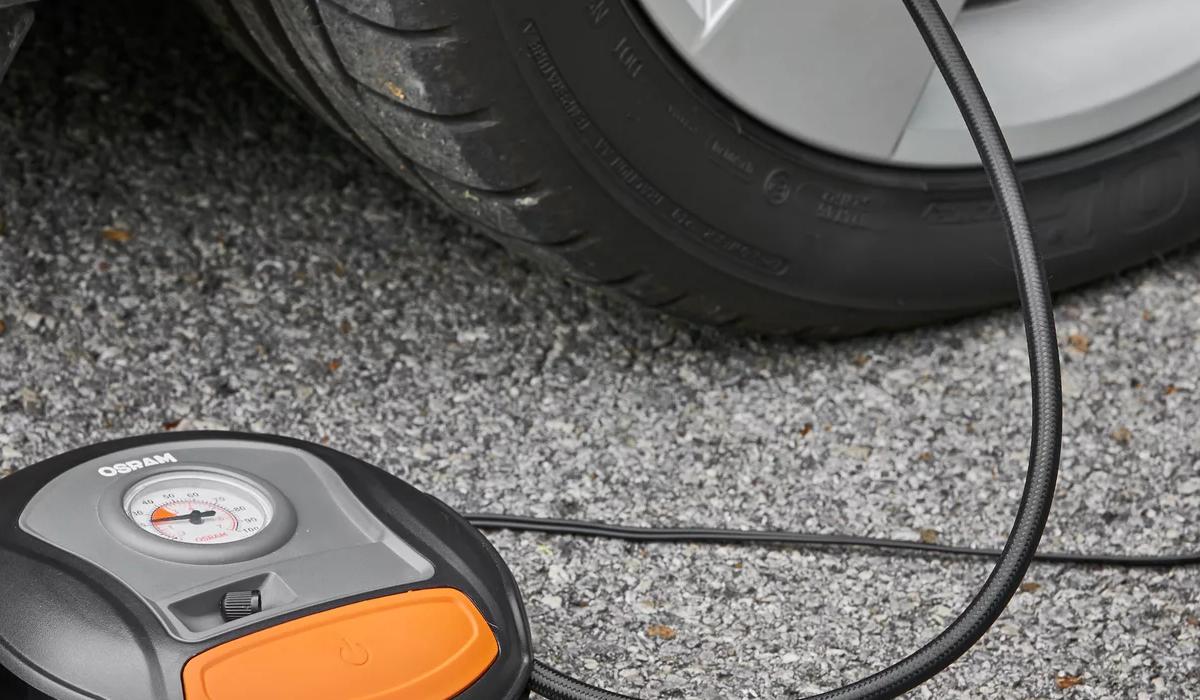

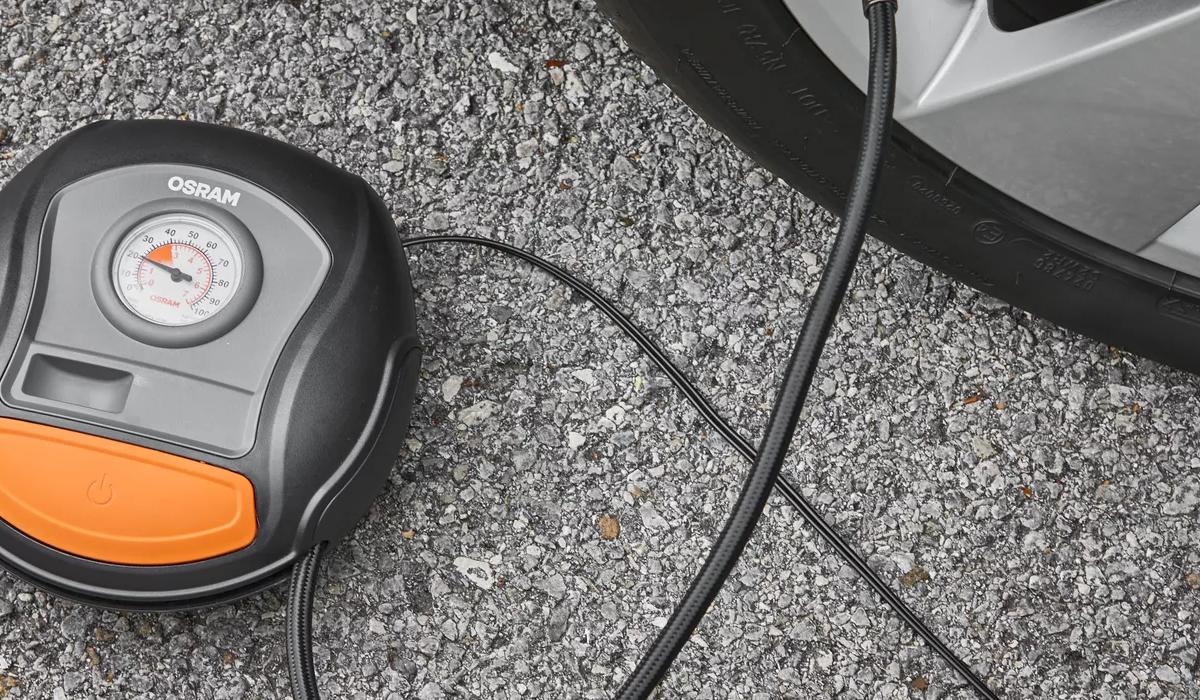

Powered from an in-car 12V socket, the Tyreinflate 200's long 3m power cable makes reaching all the tyres around the vehicles easier. Shows pressure readings in kPA, bar and PSI. Includes storage compartment for tyre valve caps when being used.
Comes with three-piece adaptor set for use with bicycle tyres, motorcycle tyres, balls and other inflatables.

**based on inflating a 13” tyre from flat to 2.41 BAR

Technical Data

Product information

Accuracy (bar)

±0.1 bar

Flow rate (l/min)

tbc

Inflation time

4.5 min

Power Cord Length

3.0 m

Charge Time (h)

N/A

Display Size

50 mm

Measuring Units

PSI, kPa, bar

Air Hose Length

50 cm

Max Pressure

5.5 bar

Country specific categorizations

Order reference

OTI200

Electrical data

Nominal voltage

11.1 V

Operating Voltage

12 V

Power Source

12 V Fused Plug

Nominal wattage

120.00 W

Dimensions & weight

Height

180.0 mm

Width

79.0 mm

Length

197.0 mm

Additional product data

Recommended to Use With

Car, Bicycle

Noise Level (dB)

90 dB

Display Type

Analogue

Capabilities

Fuse

10 A

Accessories

Adaptors for: Balls, Air Mattress, Bikes

Environmental information


Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Date of Declaration

07-03-2024

Primary Article Identifier

4052899620209

Candidate List Substance 1

Lead

CAS No. of substance 1

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

2c7125da-b121-4f3d-8c54-1fc45a571265

Packaging information

EAN

Unit

Piece

Dimension l x w x h

Weight

Volume

4052899620209 FS

Folding box

1 186mm x 83mm x 203mm 790.00g 3.13dm³
4062172166515 VS

Shipping box

4 351mm x 206mm x 238mm 3462.00g 17.21dm³

Downloads

Information about Family

The OSRAM Tyreinflate 200 analogue tyre inflator inflates a 13” tyre from flat in up to 4.5 minutes**. It has a large on/off button for easy use. Its stable design keeps the inflator still while in use.
Powered from an in-car 12V socket, the Tyreinflate 200's long 3m power cable makes reaching all the tyres around the vehicles easier. Shows pressure readings in kPA, bar and PSI. Includes storage compartment for tyre valve caps when being used.
Comes with three-piece adaptor set for use with bicycle tyres, motorcycle tyres, balls and other inflatables.

**based on inflating a 13” tyre from flat to 2.41 BAR
