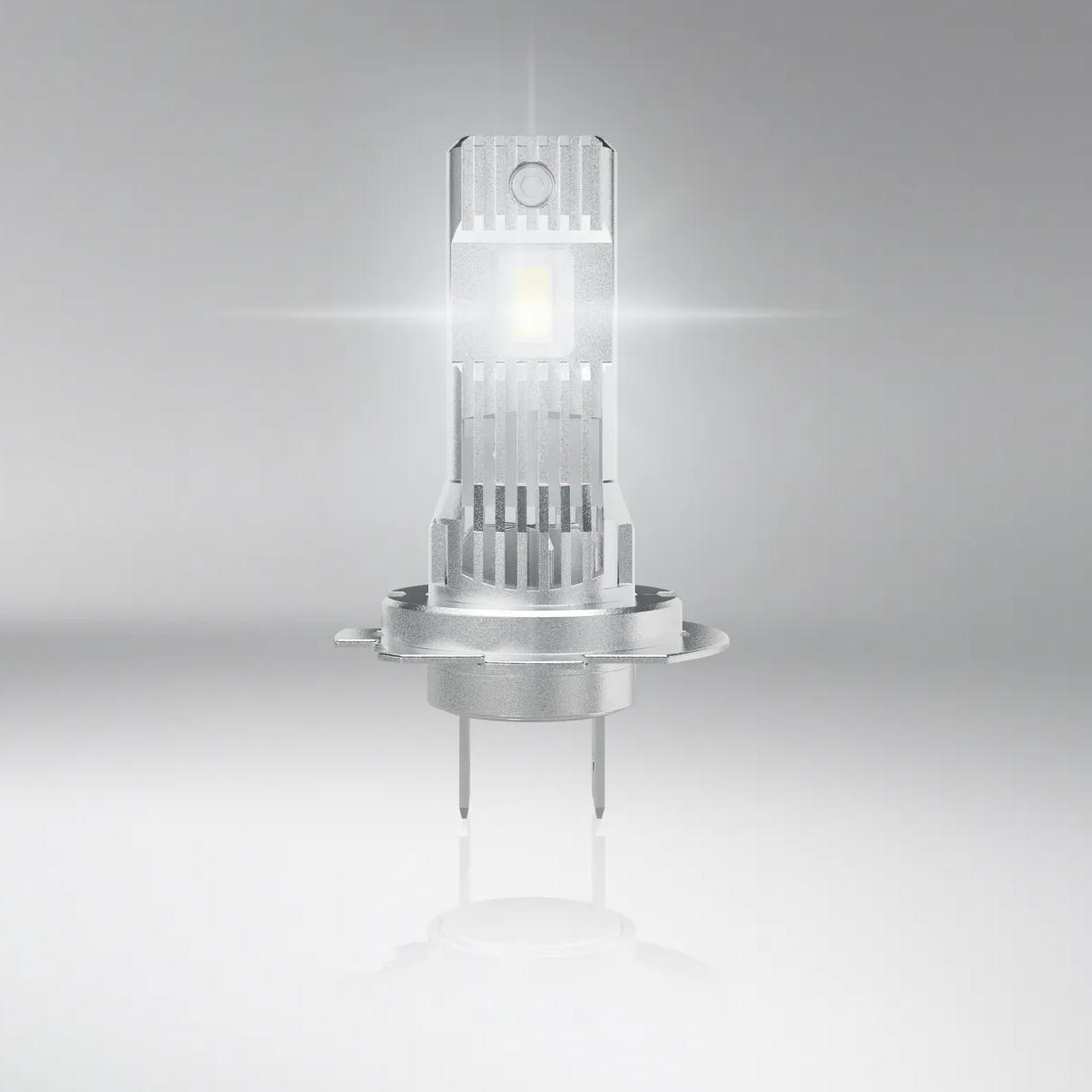

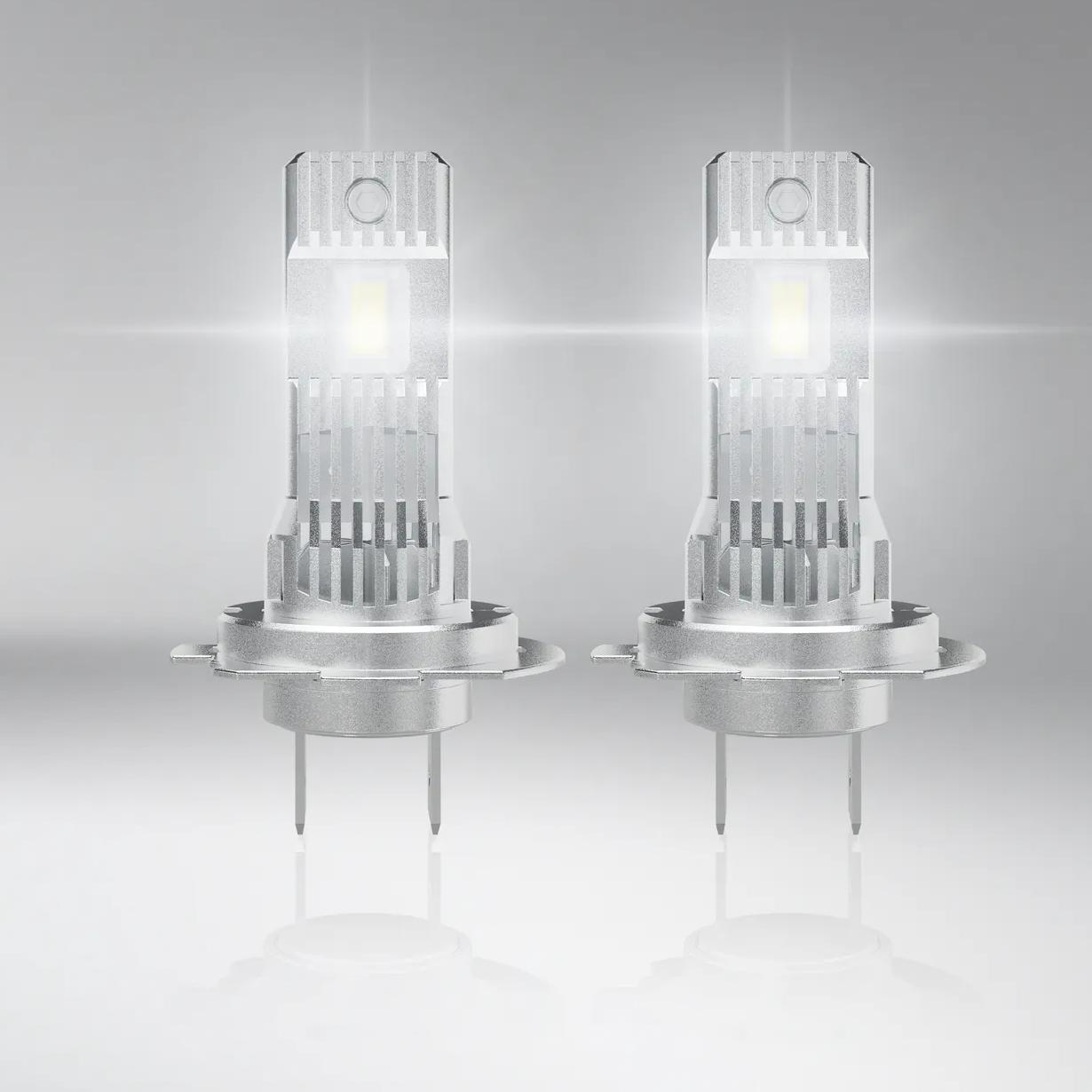

LEDriving HL EASY FREE H7/H18

Error-message-free LED lamp with Plug & Play system: no adapters, no caps and no CANbus needed1)

With its socket-based solution, the OSRAM LEDriving HL EASY FREE retrofit provides an ultra-compact LED replacement of conventional lamps with cool white LED light – providing a stylish look as well as up to +300% more brightness (compared to minimum ECE R112). It offers an easy Plug & Play installation with optimized compatibility: no adapters, no caps and no CANbus needed1). An optimized high-speed fan provides the active cooling – making a higher performance and high-level light output possible thanks to maximized heat dissipation.The LEDriving HL EASY FREE lamps by OSRAM replace conventional halogen lamps, are 12 V compatible and have a cool white color temperature. With the latest LED technology and very compact design, these lamps allow a high compatibility and an easy installation for cars with the respective halogen lamp types. These products do not have ECE approval and must not be used on public roads in any exterior application. Public roads use leads to cancellation of operating license and loss of insurance coverage. Several countries forbid sale and use of these products. Please contact your local distributor for further information.1) On almost all car models
ATTENTION HOT USE ADEQUATE EYE PROTECTION WHEN MOUNTING AND DEMOUNTING SWITCH OFF HEADLIGHTS BEFORE CHANGING LAMPS HAVE ON ADEQUATE GLOVES WHEN MOUNTING AND DEMOUNTING RADIATION RISK CE Marked AM Icon Offroad EAC CERTIFICATION HOT SURFACE NON ECE CONFORM OC 061 UKRAINE

Technical Data

Product information

Application (Category and Product specific)

High beam, low beam and fog light

Product type (off-road vs. on-road)

Off-road ≙ H7/H18

General Product Information

Global order reference

64210DWESYF-2HB

Electrical Data

Power input

30 W

Nominal voltage

12 V

Nominal wattage

30 W

Power input tolerance

±25 %

Test voltage

13.2 V

Photometric Data

Nominal luminous flux

3000 lm

Luminous flux tolerance

±25 %

Light color LED

Cool white

Color temperature

6500 K

Physical Attributes & Dimensions

Length

60.0 mm

Diameter

14.2 mm

Product weight

18.50 g

Lamp base

PX26d

Lifetime Data

Lifespan Tc

> 1000 hr

Capabilities

Technology

LED

Environmental & Regulatory Information


Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Primary article identifier

4062172438742

Declaration no. in SCIP database

In work

Packaging information

EAN

Unit

Piece

Dimension l x w x h

Weight

Volume

4062172438742 New HFB

Hanging Folding Box

2 100mm x 51mm x 120mm 67.00g 0.61dm³
4062172438759 New VS

SHIPPING BOX

10 266mm x 111mm x 134mm 414.00g 3.96dm³
