Aqua MINI underwater RGBW fixture

Create magical moments with Aqua MINI

For indoor and outdoor fountain and water show lighting

Breathtaking moments in life are what create the experience we receive, making it worth every minute and every second. When the two main elements of nature: ‘water’ and ‘light’ come together and create one of the most amazing experiences, magic simply happens and leaves an unforgettable memory in our minds.

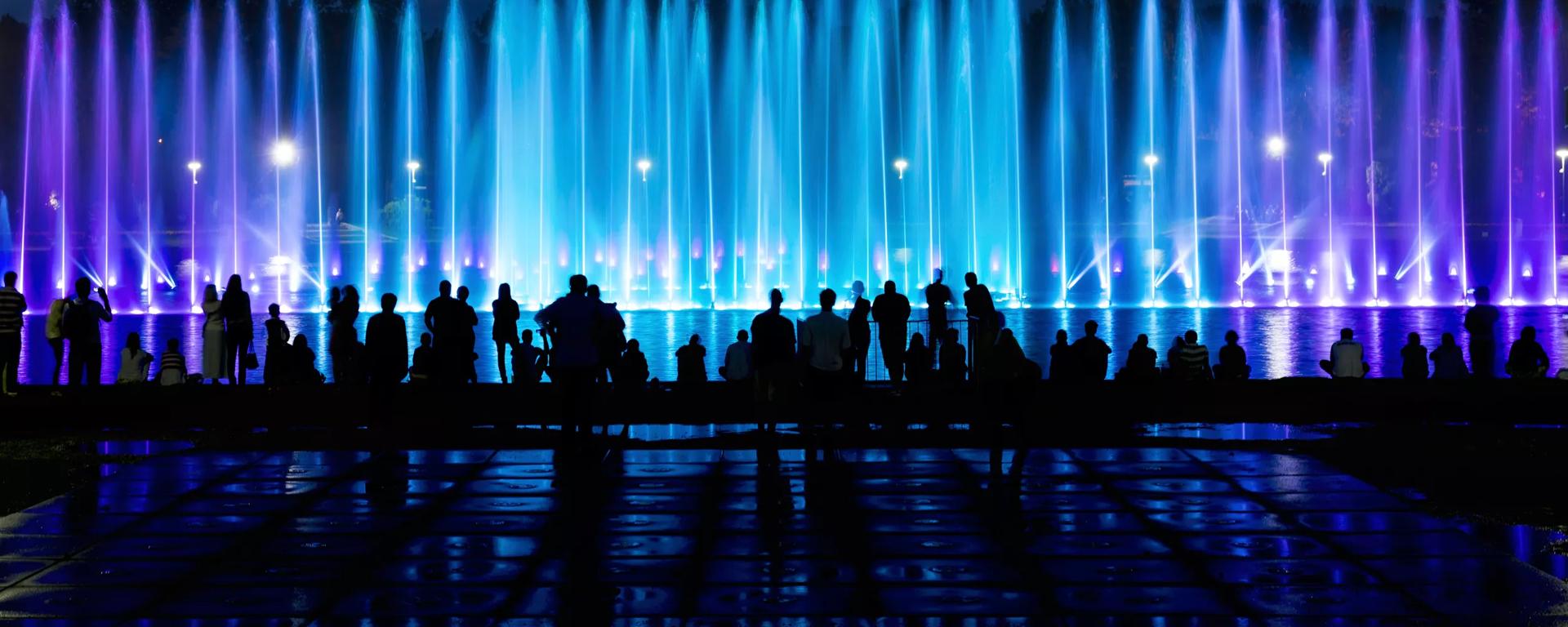

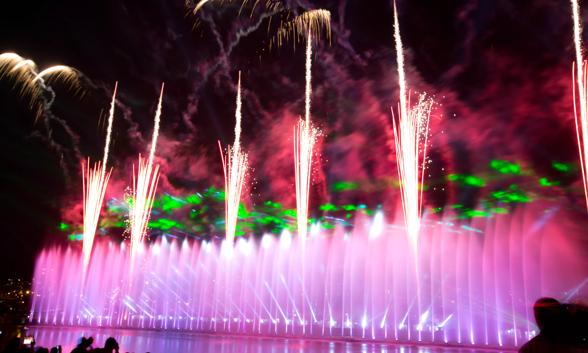

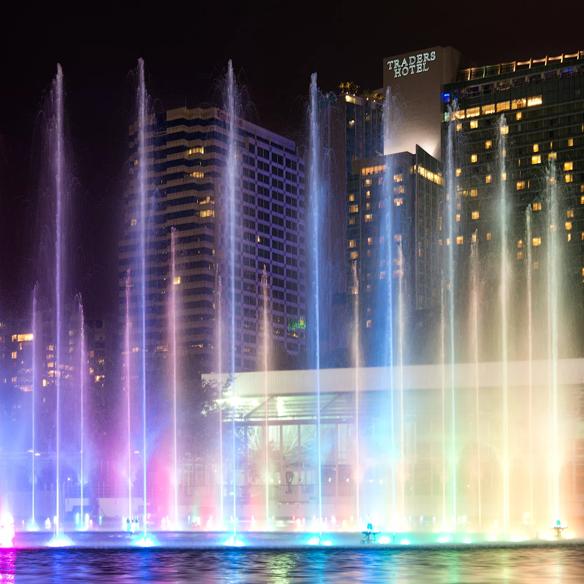

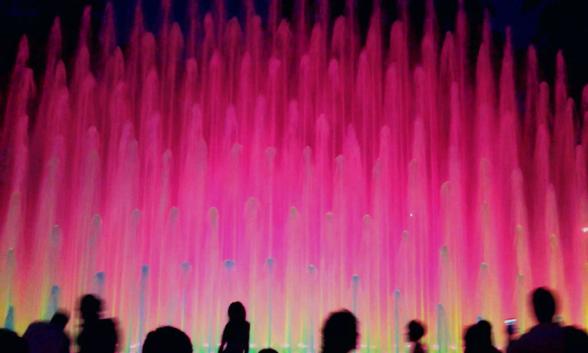

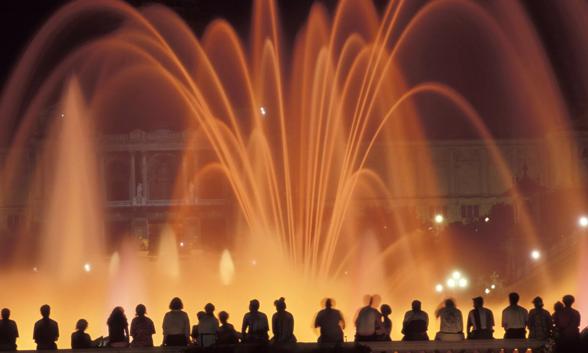

Water shows are perfect for integration into live performances and architecture such as a concert with an orchestra or a dance recital, where a water show can be created in the background or used as decor integrated into the staging.

Programmable and controlled by DMX, AQUA MINI is a powerful (160W) and highly efficient (>3500lm) permanent underwater RGBW fixture (IP68) which is compliant with CE and ETL regulations. Aqua MINI is the ultimate inspiration for water show designers to make them turn water and light into emotions!

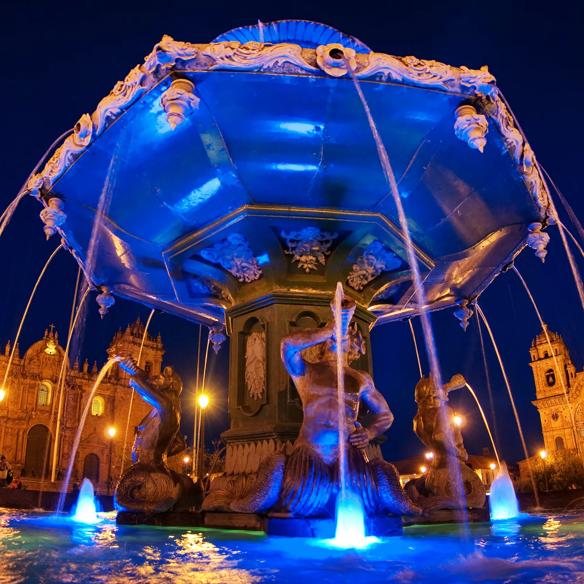

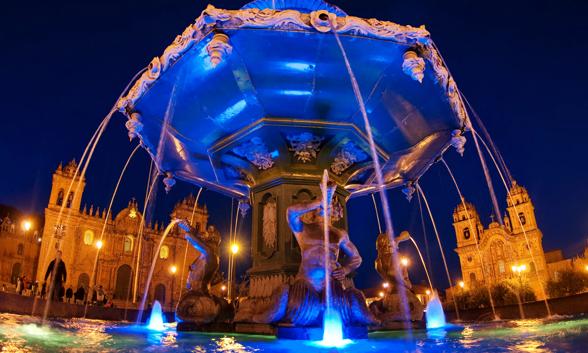

Aqua MINI is easy to transport, install and run thanks to its unique design. It can transform outdoor water fountains, historical fountains, sculptures or newly developed water shows easily and powerfully. This smart luminaire’s 6 channels (including adjustable strobe effect) and RDM capabilities provide a lot of functions and advantages such as durability, chromatic reproduction and resistance to being turned on and off continually.

Any color is possible through RGB combinations.

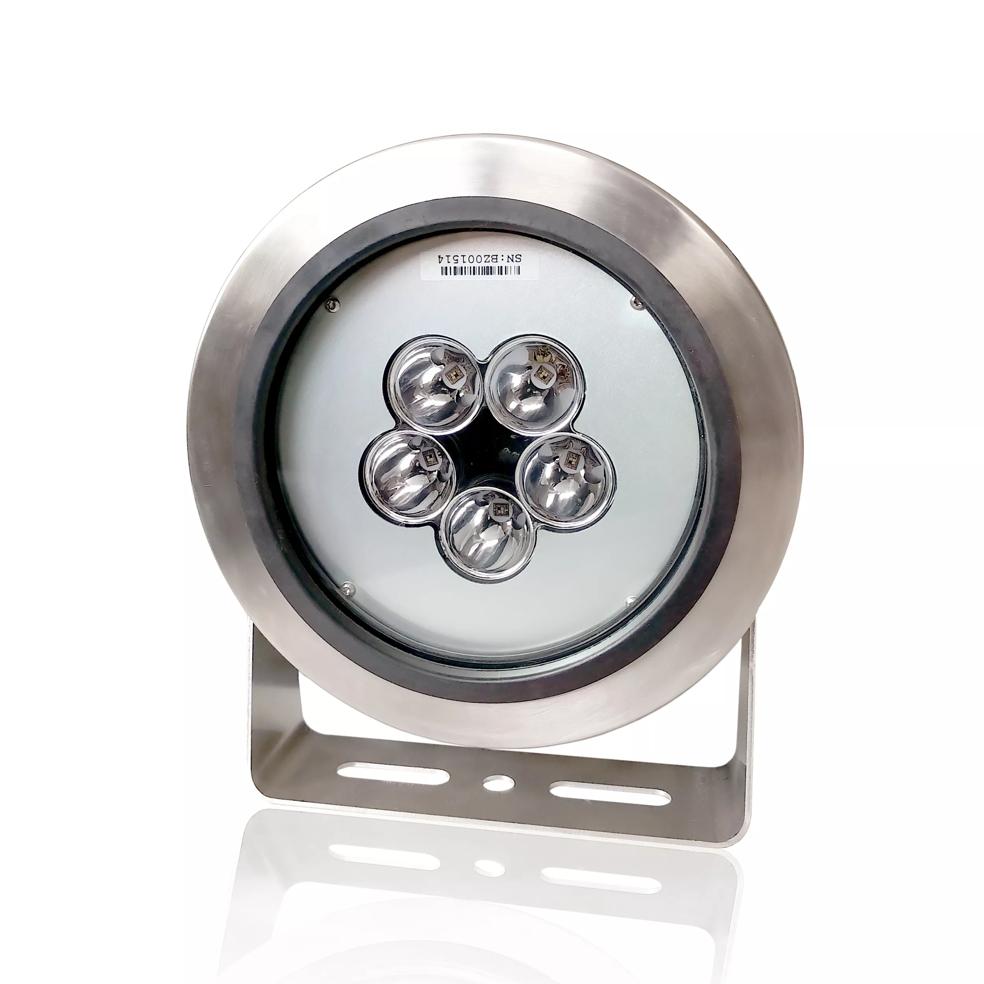

Aqua MINI underwater RGBW fixture

  • Typical Light output of >3500lm
  • 5 RGBW multichip (4 in 1) / high power (30W each)
  • Transportation and handling savings can be made thanks to its compactness

  • Maximum power consumption of 160W when all LEDs are used at 100%
  • IP68 rated for permanent underwater use

Product features and benefits

  • Compact permanent underwater fixture (IP68)
  • 5 * 4 in 1 LEDs (OSRAM OSTAR Stage)
  • 160W power consumption
  • 3500lm output
  • 24V input voltage
  • 10 degree beam angle
  • CE and ETL certification (for USA and Canadian markets)

  • Designed for use underwater (automatic dimming if used out of water)
  • DMX in and out. RDM functions
  • Integrated driver

  • Available accessories:
  • Applications: fountain illumination (small fountains 10-15m height) / water show (not to be used in swimming pools) / Architainment
  • IP68 DMX extension cable with male connector on one side and female connector on the other side (10,25m) IP68 Power extension cable with male connector on one side and female connector on the other side (10,25m)

Technical Specifications

Output >3500lm @ 160W
Output distribution (FWHM)10°+/-2°
Input voltage20V -28V DC (Suggested 24V)
SizeØ 201mm x 61.7 mm
Net weight4.5kg (including power cable)
CertificationsCE & ETL
CommunicationDMX & RDM
Channels6 (including strobe function)

Aqua MINI DMX / RDM and security functions

  • Aqua MINI is designed to be used in water fountain shows.
  • Controllable by DMX.

  • RDM functions have been implemented to provide the user ease of use and control points of the device.
  • Dimming down of the LEDs if critical temperature is exceeded for any reason.

Material

Product Name

EAN-040

ClayPaky Commercial Code

AM1900300HMKreios Aqua Mini RGBW 160W VS1 OSRAM4052899595668OL2005E60100
MaterialProduct NameEAN-010
AM19342017GAQUA MINI DMX CABLE EXT 10M VS6 OSRAM4062172016155OA1001000102
AM19343017GAQUA MINI DMX CABLE EXT 25M VS2 OSRAM4062172016179OA1002000102
AM19341017GAQUA MINI DMX CABLE EXT 5M VS10 OSRAM4062172016124OA1000000102
AM19345017GAQUA MINI POWER CABLE EXT 10M VS4 OSRAM4062172016216OA1004000102
AM19346017GAQUA MINI POWER CABLE EXT 25M VS2 OSRAM4062172016230OA1005000102
